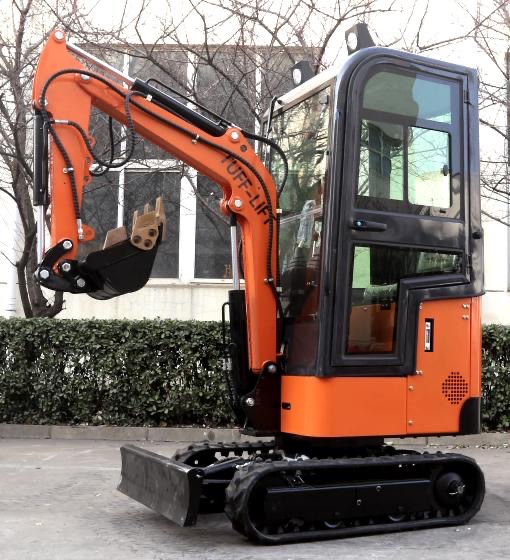

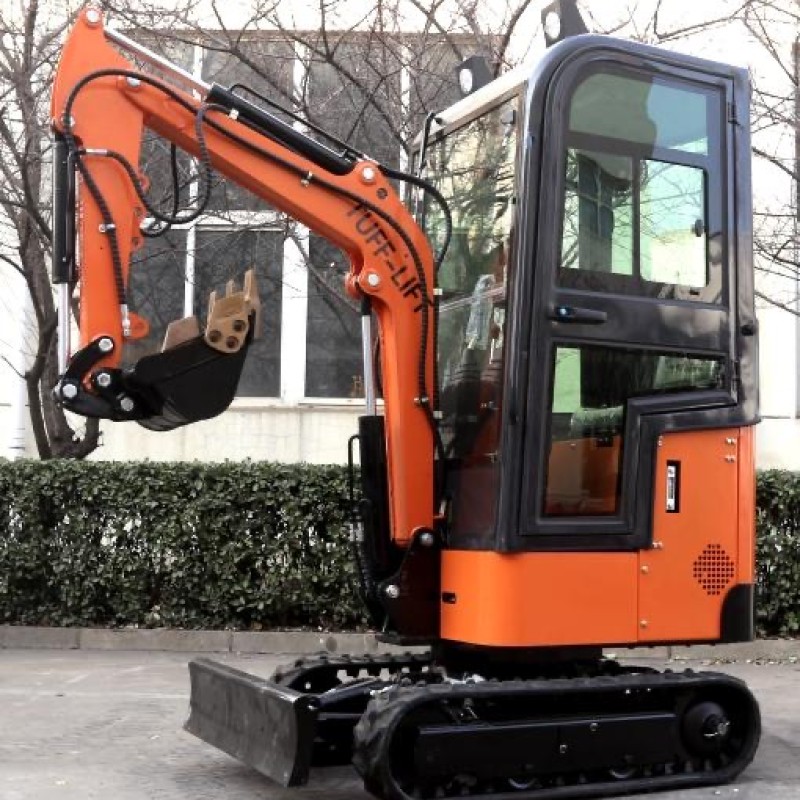

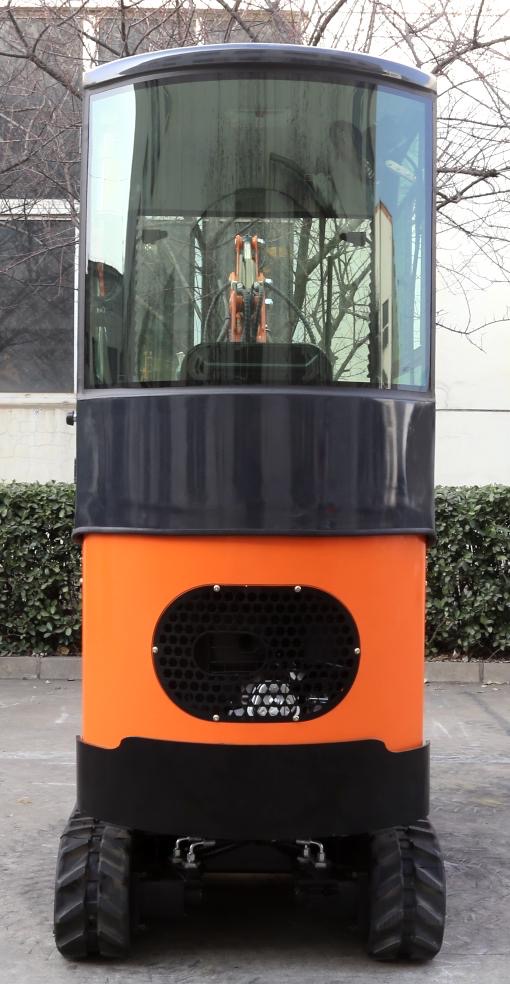

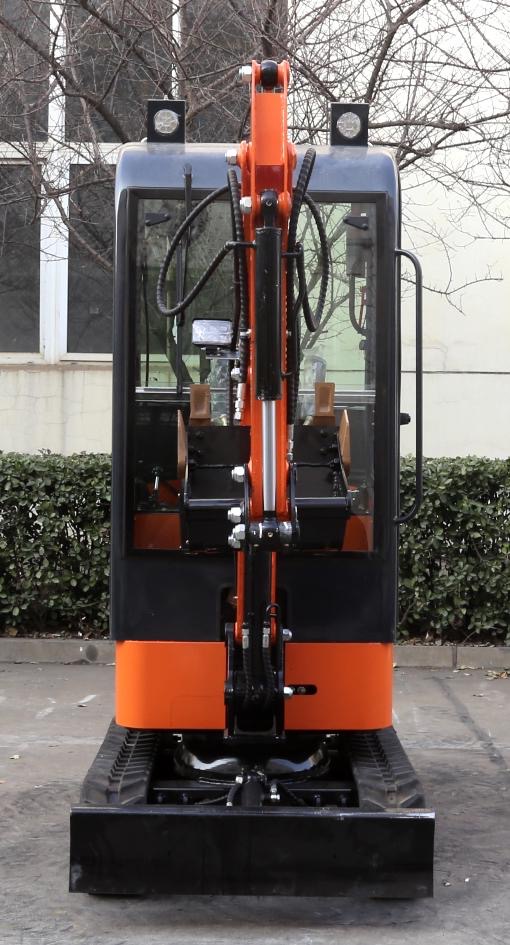

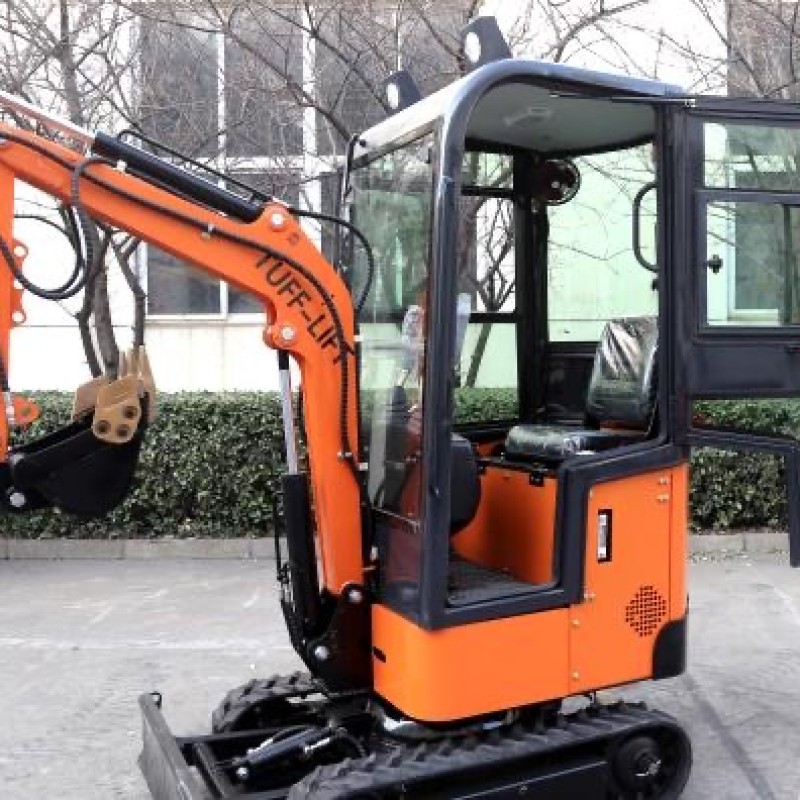

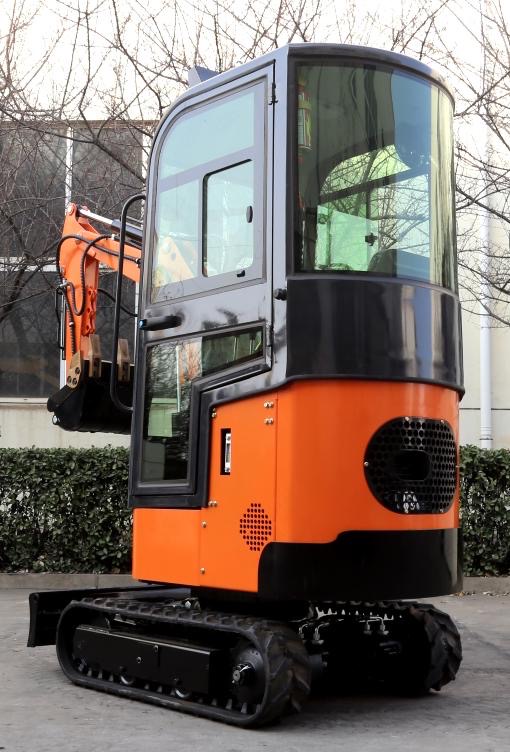

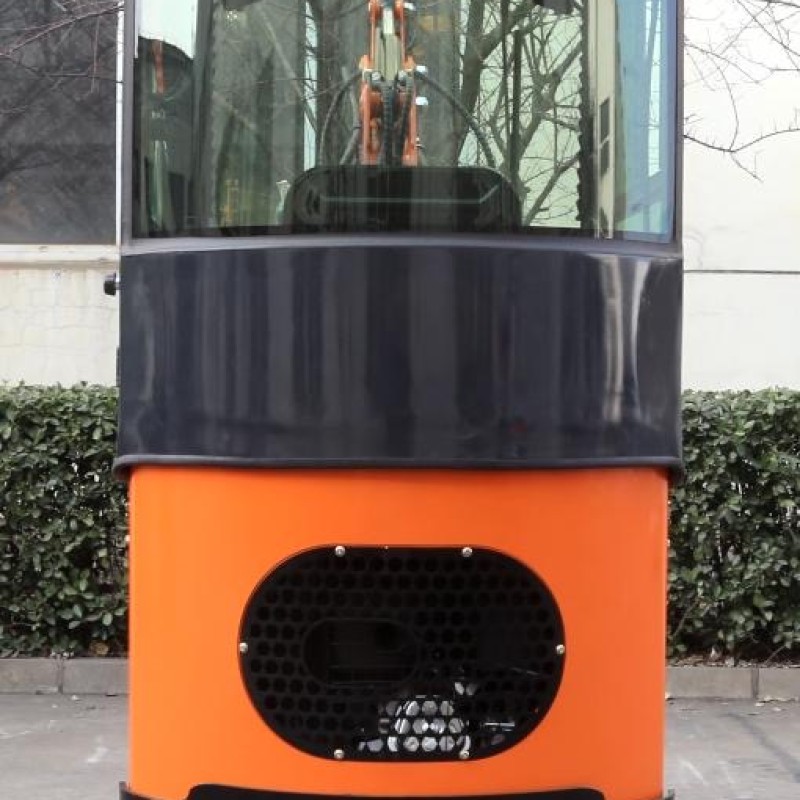

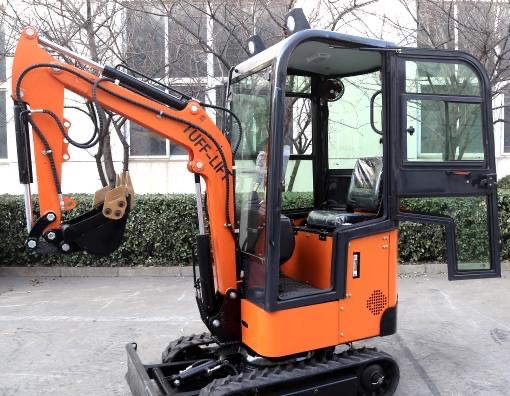

Features & Specs (Compact Excavator)

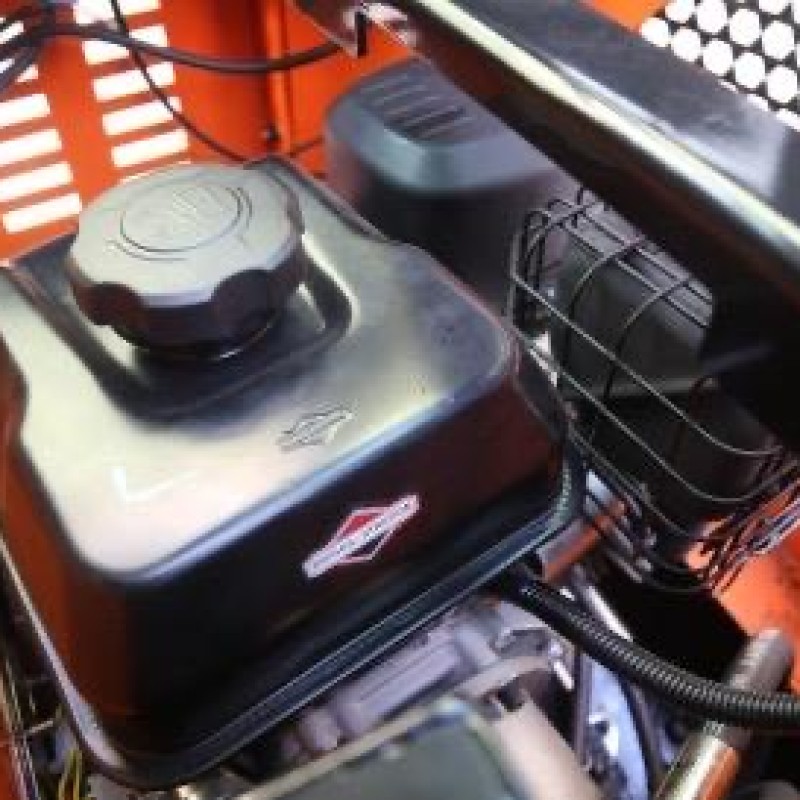

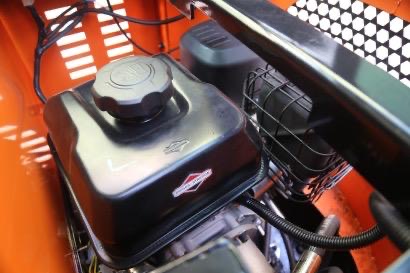

• Horsepower: 13.5 HP Briggs & Stratton (air-cooled, 499 cc)
• Working Weight: 2,205 lbs

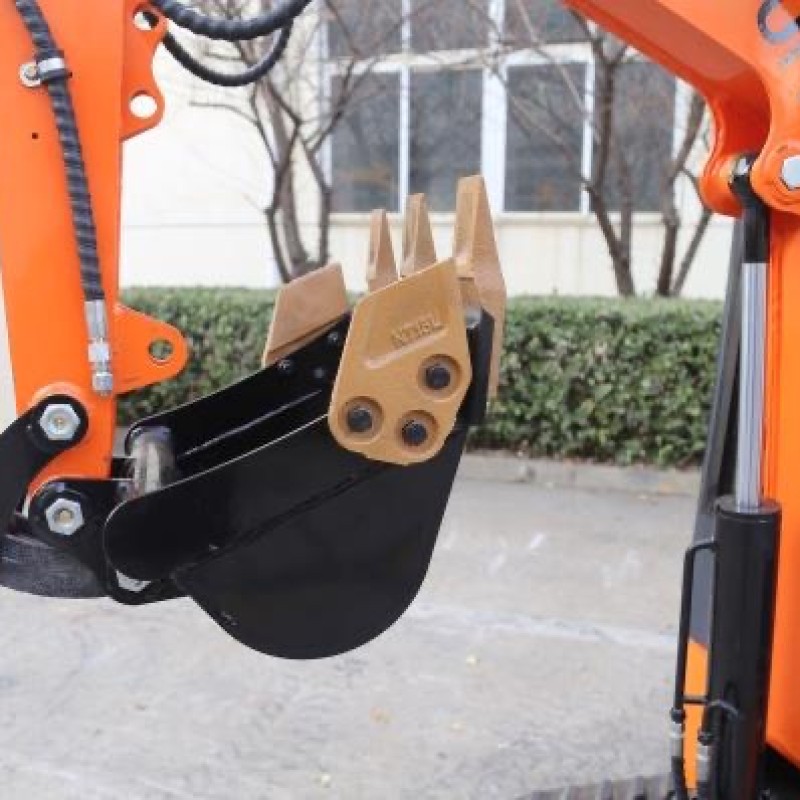

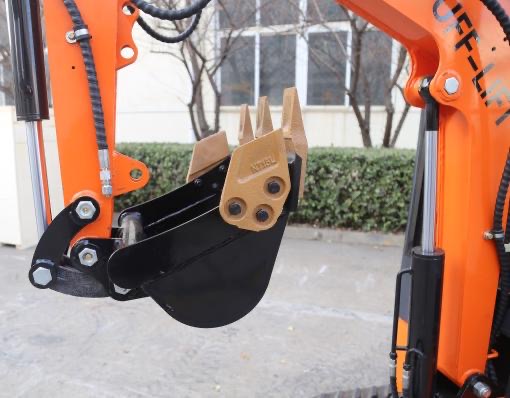

• Bucket: 0.025 m² / 331 lbs capacity, 14 in width
• Pullout Force: 9.8 kN (2,205 kg)
• Hydraulics: 23 L/min flow, 16 MPa pressure (Tianji pump)
• Travel Speed: 1 mph
• Tank Capacity: Fuel 5.5 L, Hydraulic 20 L, Engine Oil 1.65 L
• Dimensions (L×W×H): 87 in × 37 in × 87 in
• Tracks: Length 42.9 in | Width 7.1 in | Height 12.6 in
• Digging Performance:
• Max Depth: 64.96 in
• Max Height: 98.03 in
• Max Reach: 94.48 in
• Blade: Max Height 12.79 in | Depth 6.88 in
• Lifting Capacity: 1.15 Ton
